Outcrops Core Sampling Drill
SKU: geofactory-core-sampling-drill
Contact for price
In stock

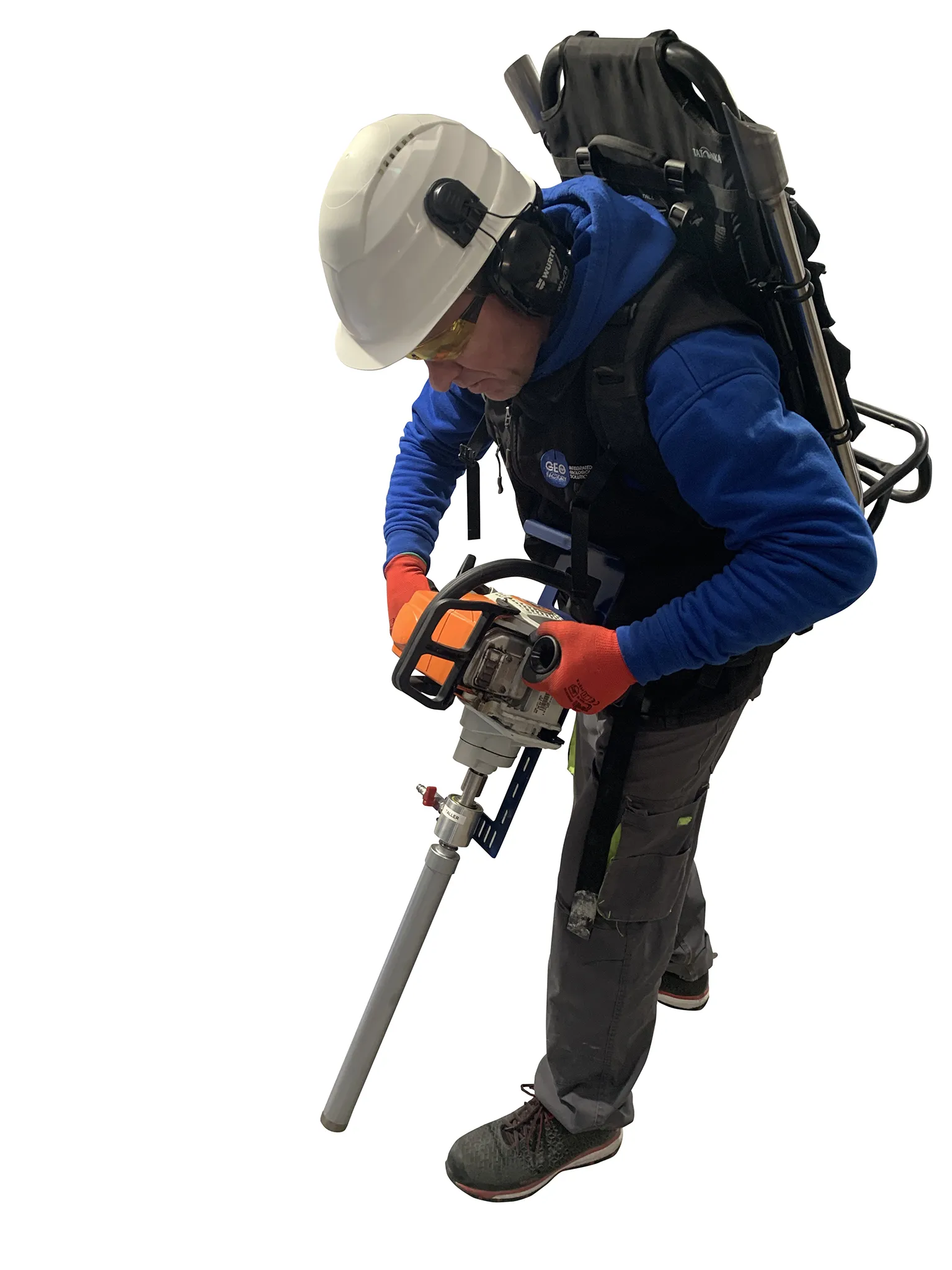

This portable, robust drill sampling equipment processes geological core samples in situ, in all orientations, with a tailored recovery kit to ensure the acquisition of representative geological samples.

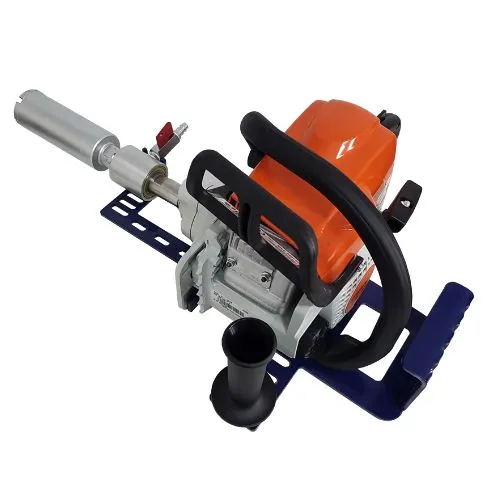

The Outcrops Core Sampling machine is ideal for in situ core drilling and geological mapping in remote environments. Portable and robust, it runs on a two-stroke petrol engine for excellent autonomy. This solution handles coring in all orientations safely and includes a customised core recovery kit, allowing you to reach a more representative core, deeper than chip samples, in any geological formation. Please see further down the page for more information. If you would like a quote for this product, please contact us by clicking HERE.
The Outcrops Core Sampling machine is ideal for in situ core drilling and geological mapping in remote environments. Portable and robust, it runs on a two-stroke petrol engine for excellent autonomy. This solution handles coring in all orientations safely and includes a customised core recovery kit, allowing you to reach a more representative core, deeper than chip samples, in any geological formation. Please see further down the page for more information. If you would like a quote for this product, please contact us by clicking HERE.
Description
This portable, robust drill sampling equipment processes geological core samples in situ, in all orientations, with a tailored recovery kit to ensure the acquisition of representative geological samples.
The Outcrops Core Sampling machine is ideal for in situ core drilling and geological mapping in remote environments. Portable and robust, it runs on a two-stroke petrol engine for excellent autonomy. This solution handles coring in all orientations safely and includes a customised core recovery kit, allowing you to reach a more representative core, deeper than chip samples, in any geological formation. Please see below for more information. If you would like a quote for this product, please contact us by clicking HERE.
Additional information:
Engine power / Weight
1.5 kW (2.0 HP) / 7.9 kg
Engine power source / Fuel Capacity
Gasoline + Engine Oil Fuel / 250 cc (Two stroke engine)
Gear system/Water swivel
Chrome, machined and treated / Thread ½”/ Quarter shut-off valve (1/4) with quick connect fitting
Push-Down Frame
Fixed on motor including anti-rotation system of the swivel

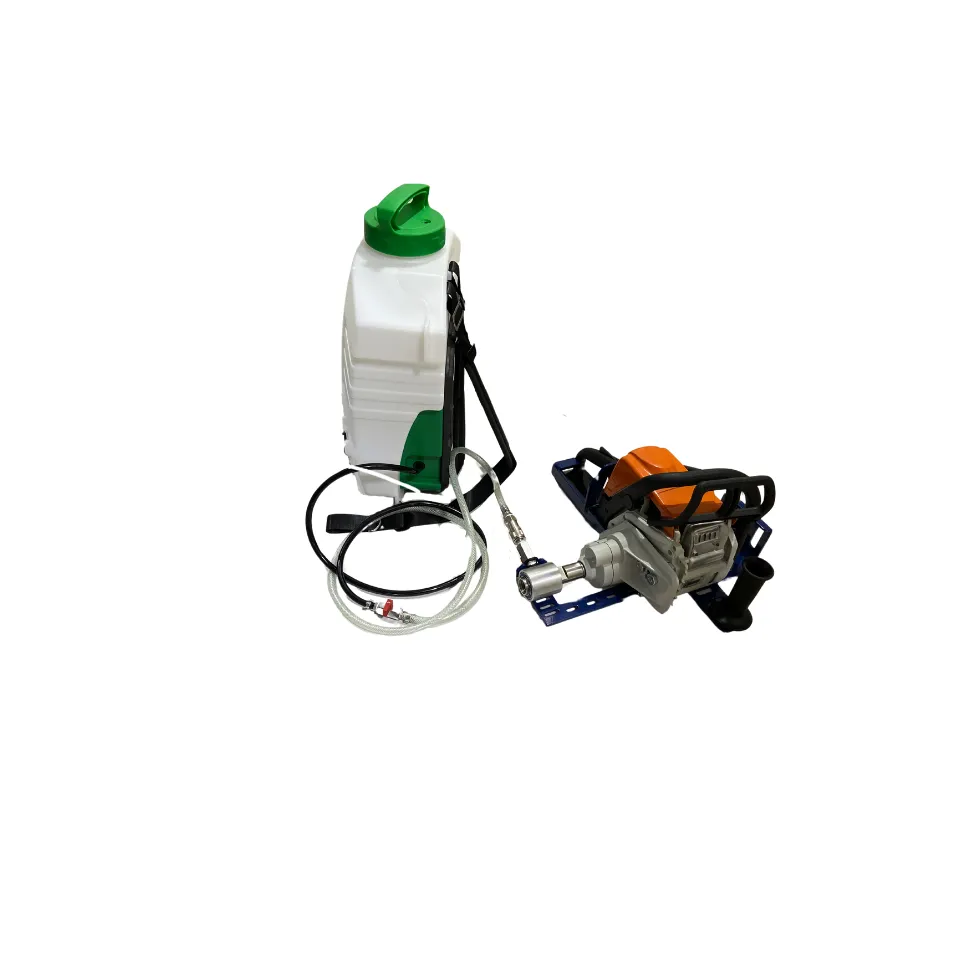

Water tank with backpack
Capacity: 16L
Hose: 3 m hose & Swivel connection-Valve for flow control
Diamond core drill
Diameter: from 1.5”/38.1mm to 2”/ 50.8 mm
Recommended: Barrel A Length: 6.3”/160 mm Barrel B length: 16”/406 mm
Different sizes under request
Accessories for core recovery
Core breaker & Core Catcher (Stainless Steel)
Designed Tools Box
Kit of wrench, Lever, Hammer, Screwdriver, Copper grease , Extraction bar, Drill guide
