Dual-Axis Saw
SKU: geofactory-dual-axis-saw
Contact for price
In stock

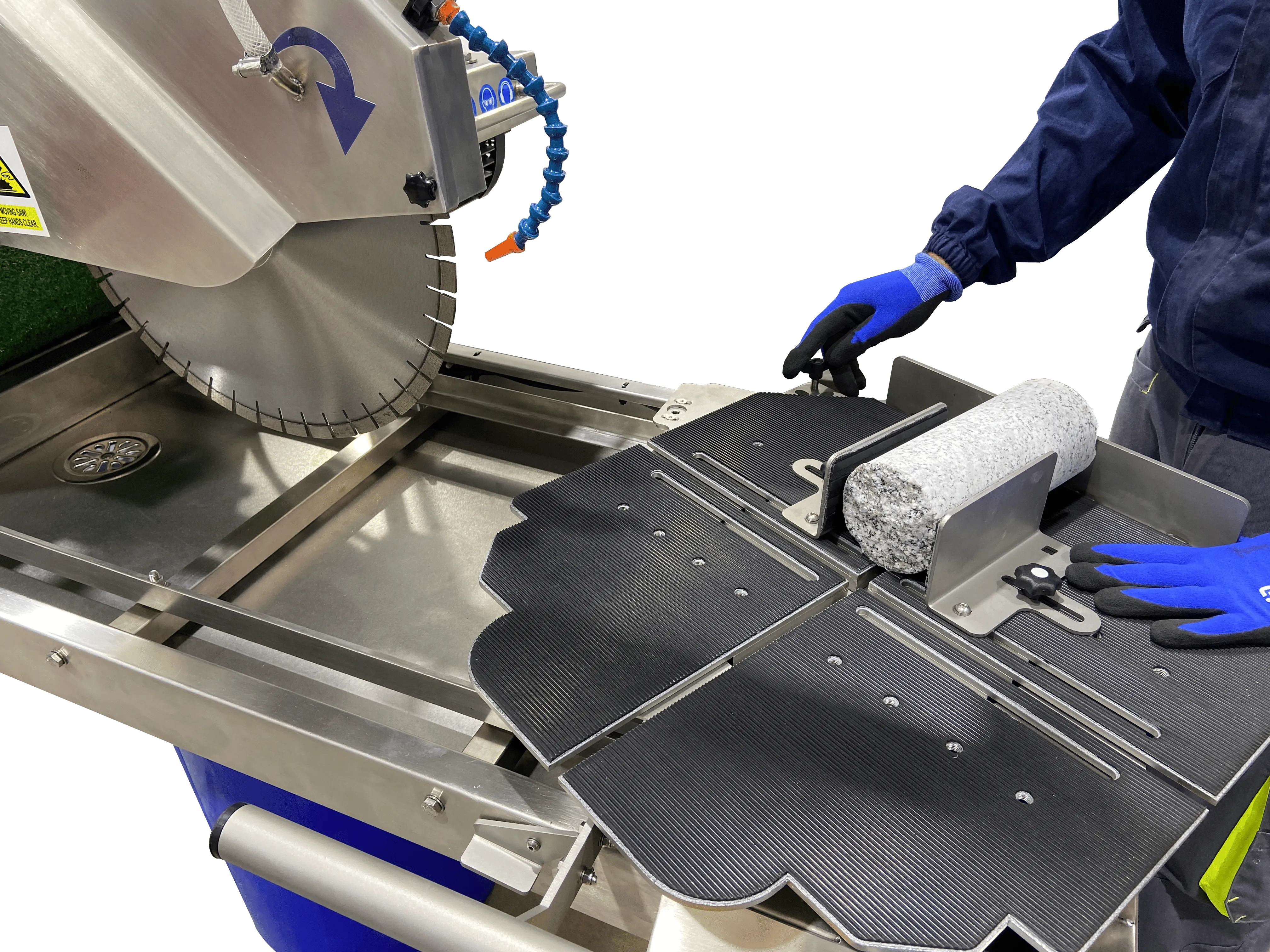

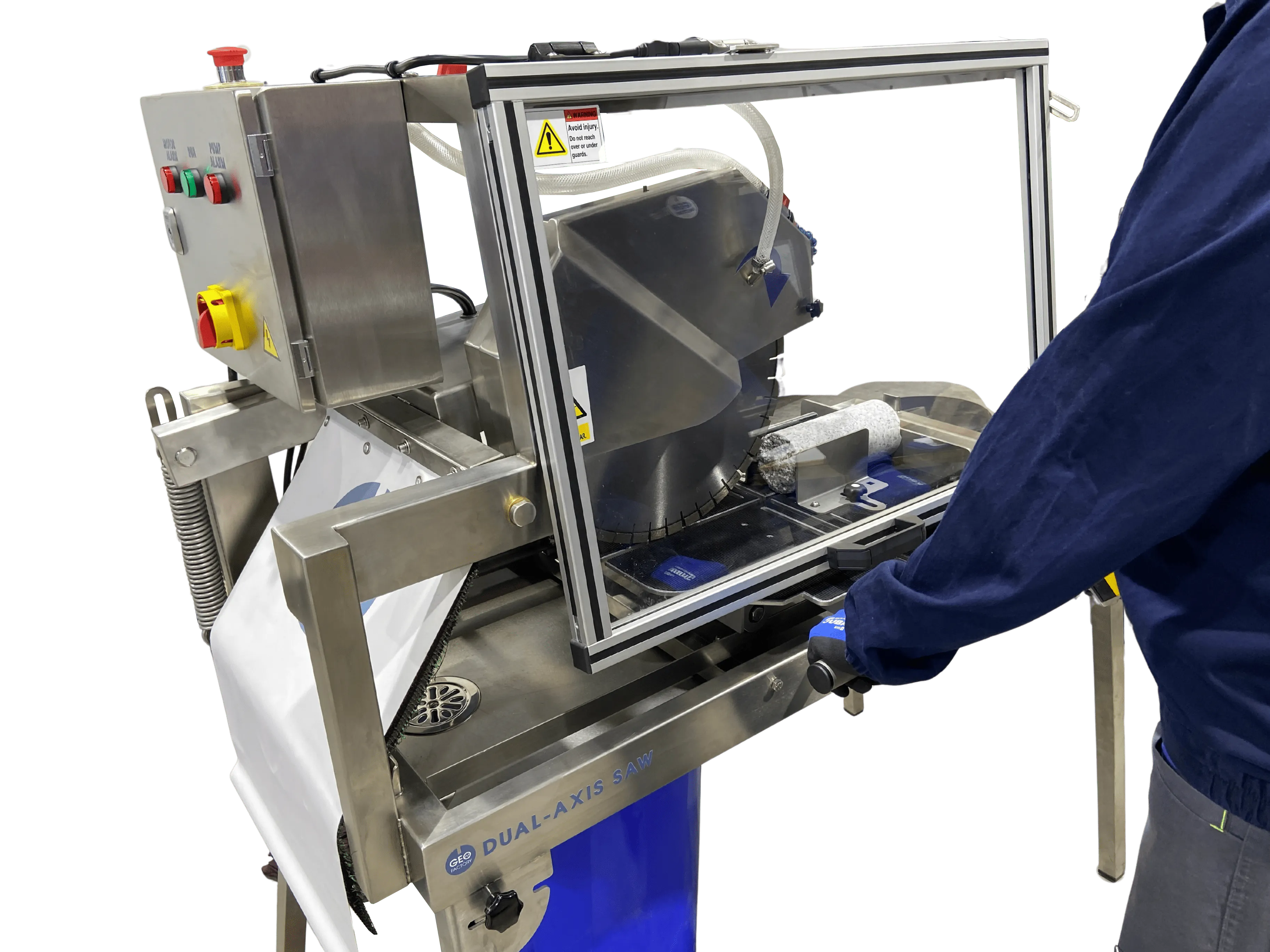

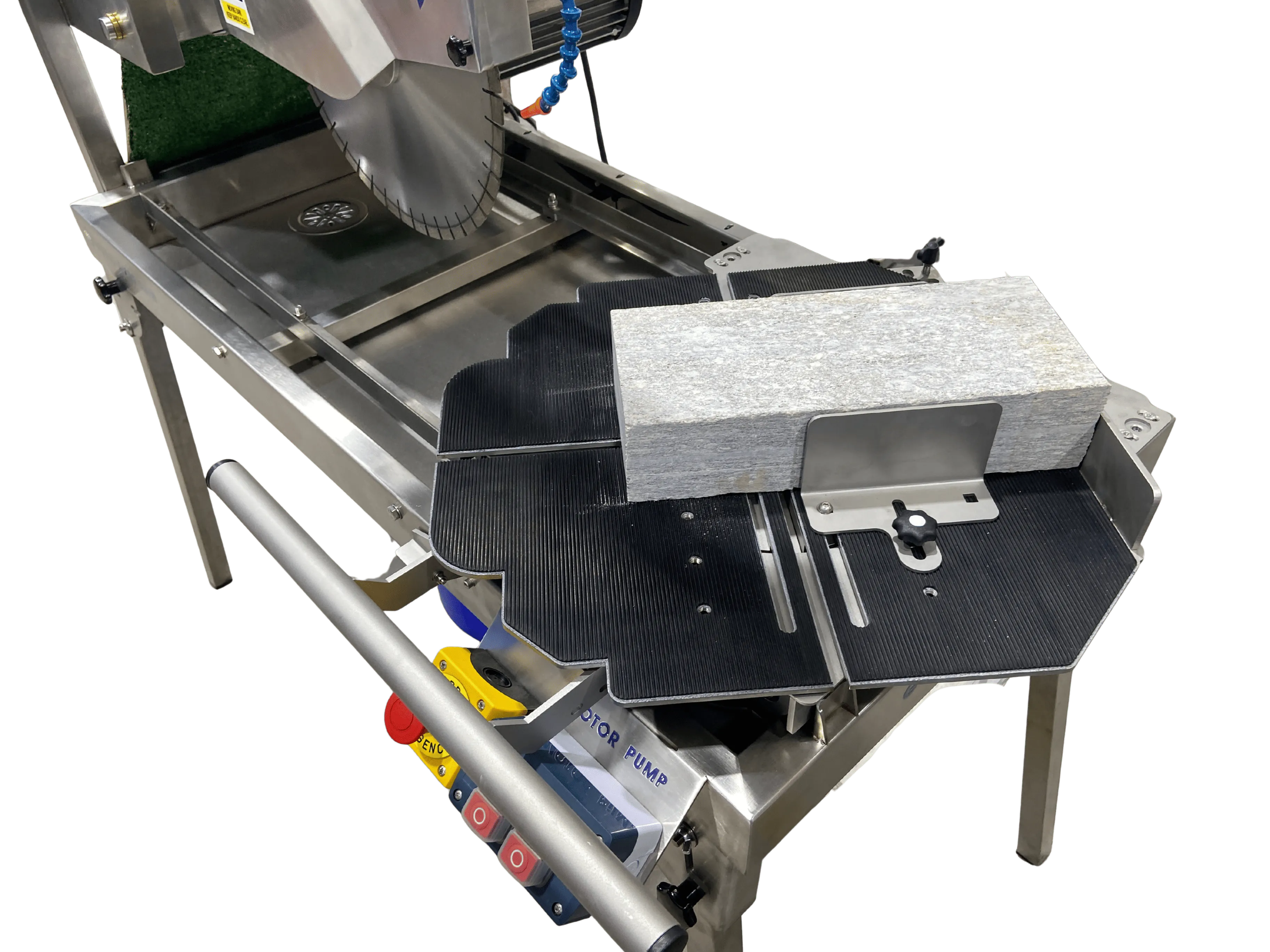

The Dual-Axis Saw by Geofactory precisely cuts geological samples using a diamond saw blade and is now manufactured in stainless steel, ensuring higher durability and corrosion resistance. It is essential for sectors such as oil and gas, mining, and geotechnical studies, where precision is crucial for petrophysical analysis and geological assessments.The Dual-Axis range of saws has been designed for the preparation of geological samples, pieces of rock, and drill cores. The innovation is in its rotary rock holder, which provides rotating support that allows cutting rock samples at 0° or 90° (slabbing and trimming). Easy to set up and move, this saw is indispensable in both field settings and laboratory environments for rock preparation.
Additional information is available at the bottom of the page.
If you would like a quote for this product, please contact us by clicking HERE.
Additional information is available at the bottom of the page.
If you would like a quote for this product, please contact us by clicking HERE.
Description
The Dual-Axis Saw by Geofactory precisely cuts geological samples using a diamond saw blade and is now manufactured in stainless steel, ensuring higher durability and corrosion resistance. It is essential for sectors such as oil and gas, mining, and geotechnical studies, where precision is crucial for petrophysical analysis and geological assessments.The Dual-Axis range of saws has been designed for the preparation of geological samples, pieces of rock, and drill cores. The innovation is in its rotary rock holder, which provides rotating support that allows cutting rock samples at 0° or 90° (slabbing and trimming). Easy to set up and move, this saw is indispensable in both field settings and laboratory environments for rock preparation.
If you would like a quote for this product, please contact us by clicking HERE.
Additional information:
Material
Stainless steel with aluminium profiles and polycarbonate
Dimensions:
1370 x 780 x 1470 mm / 53.94 x 30.71 x 57.87 in
Weight:
139 kg / 291 lbs
Power supply:
220-230 VaC / 50 Hz – Single-phase
Motor type:
Arbor size: Ø25.4 mm (1 inch)
RPM:
2800
Maximum cutting depth:
108 mm using a 350 mm blade / 14 inch blade
135 mm using a 400 mm blade / 16 inch blade
Maximum cutting length:
500 mm
Rotation:
0º or 90º
Diamond blade diameter:
350 mm/ 14 inch
400 mm / 16 inch
Recirculating fluid system:
Pump:
Water pump: 1.1 kW / 50 L / min
(Optional) High viscosity pump: 0,37 kW / 300L/min
Tank capacity:
Standard: 100 L
(Optional) Decanting tank: 300 L
[embed]https://www.youtube.com/watch?v=Lb3Eo-cyMgo&list=PLfeaeZ737B2k-BoEmQ29zByVYiVLnI4cg[/embed]
