Core Saws And Blades
Mining Core Saw
SKU: geofactory-mining-core-saw
Contact for price
In stock

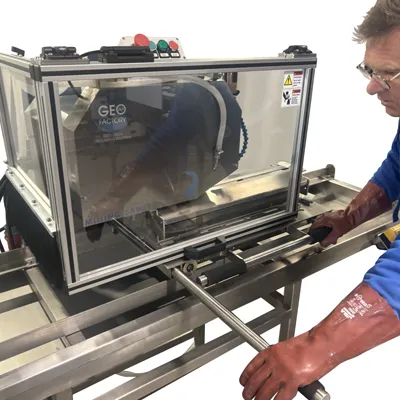

The Mining Core Saw, by Geofactory. This slabbing saw model, featuring a diamond blade, is ideal for the mining industry. It ensures precise cutting of geological samples and high production rates across all geological hardness levels.
Geofactory developed a model of manual saw specially designed for the mining industry. The “Mining Saw” is made of 100% stainless steel to protect against corrosion and powered with an engine of 12.5 HP. It equipped with a different removable core holder to speed-up the cutting process and allow to work simply with fractured core up to PQ size. Extremely safe, the operator can cut with a forward speed of +/-0.8s per 1 cm that allow a large production of cut and always in security condition (less of 83dB). This saw can be customised for your project. Please see further down the page for more information. If you would like a quote for this product, please contact us by clicking HERE.
Geofactory developed a model of manual saw specially designed for the mining industry. The “Mining Saw” is made of 100% stainless steel to protect against corrosion and powered with an engine of 12.5 HP. It equipped with a different removable core holder to speed-up the cutting process and allow to work simply with fractured core up to PQ size. Extremely safe, the operator can cut with a forward speed of +/-0.8s per 1 cm that allow a large production of cut and always in security condition (less of 83dB). This saw can be customised for your project. Please see further down the page for more information. If you would like a quote for this product, please contact us by clicking HERE.
Description
The Mining Core Saw, by Geofactory. This slabbing saw model, featuring a diamond blade, is ideal for the mining industry. It ensures precise cutting of geological samples and high production rates across all geological hardness levels.
Geofactory developed a model of manual saw specially designed for the mining industry. The “Mining Saw” is made of 100% stainless steel to protect against corrosion and powered with an engine of 12.5 HP. It equipped with a different removable core holder. This will speed-up the cutting process and allow to work simply with fractured core up to PQ size. Extremely safe, the operator can cut with a forward speed of +/-0.8s per 1 cm that allow a large production of cut and always in security condition (less of 83dB). This saw can be customised for your project. Please see below for more information. If you would like a quote for this product, please contact us by clicking HERE.
Additional information:
Core Diameter
Up to PQ
Core Length
Up to 600mm/1.96”
Power Supply
380-400 VaC, 50Hz, IP 44
Motor Power
12.5 HP (9 kW) Peak / 380-400 VaC 50 Hz / IP 55 / 2900 rpm
Material
Stainless steel
Diamond Blade
350mm / 14”; Segmented or Continue
Recirculating fluid system
3x Water injection / Decanting tank capacity : 300L (Stainless steel)
Pump
Water pump: 1.1 kW / 50 L / min
(Optional) High viscosity pump: 0,37 kW / 300L/min
Dimension & Weight
2110 x 1400 x 1500mm / 7.03×4.67×5.00 ft – 246Kg
Geofactory developed a model of manual saw specially designed for the mining industry. The “Mining Saw” is made of 100% stainless steel to protect against corrosion and powered with an engine of 12.5 HP. It equipped with a different removable core holder. This will speed-up the cutting process and allow to work simply with fractured core up to PQ size. Extremely safe, the operator can cut with a forward speed of +/-0.8s per 1 cm that allow a large production of cut and always in security condition (less of 83dB). This saw can be customised for your project. Please see below for more information. If you would like a quote for this product, please contact us by clicking HERE.
Additional information:
Core Diameter
Up to PQ
Core Length
Up to 600mm/1.96”
Power Supply
380-400 VaC, 50Hz, IP 44
Motor Power
12.5 HP (9 kW) Peak / 380-400 VaC 50 Hz / IP 55 / 2900 rpm
Material
Stainless steel
Diamond Blade
350mm / 14”; Segmented or Continue
Recirculating fluid system
3x Water injection / Decanting tank capacity : 300L (Stainless steel)
Pump
Water pump: 1.1 kW / 50 L / min
(Optional) High viscosity pump: 0,37 kW / 300L/min
Dimension & Weight
2110 x 1400 x 1500mm / 7.03×4.67×5.00 ft – 246Kg
